Butterfly Valve wafer type,flange tupe Fluorine butterfly valve
- Model
- D371F46-10/16
Item specifics
- Nominal diameter
- DN40-1000
- Nominal pressure
- PN1.0-1.6MPA
- Mediums
- Various Carrosive Mediums
- Temperature Range
- +10℃~120℃
Review
Description
Product Description

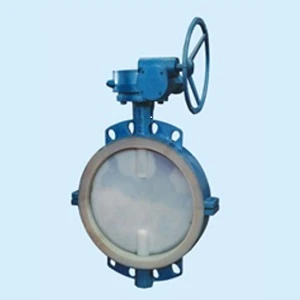

PTFE Lined Butterfly Valve
Our patented PTFE lined valve adopting the PTFE butterfly board sealed sphercial surface,being equipped with silicon rubber cushion in the seat is flexible,perfect on sealing per formance and ling span life,it can be used toquick cutting or controling the flow and also applied to the sites required reliable sealing and good throttling to the flow.The docy adopts,divided style,the seating between the end of valve shafts can be reached by fluorine rubber on the rotary base between the butterfly board and valve seat,there fore,the impact and beautiful outlook,reasonable technology and steady perfoemance can be realize,mean while.
Product Specification
Detail Images

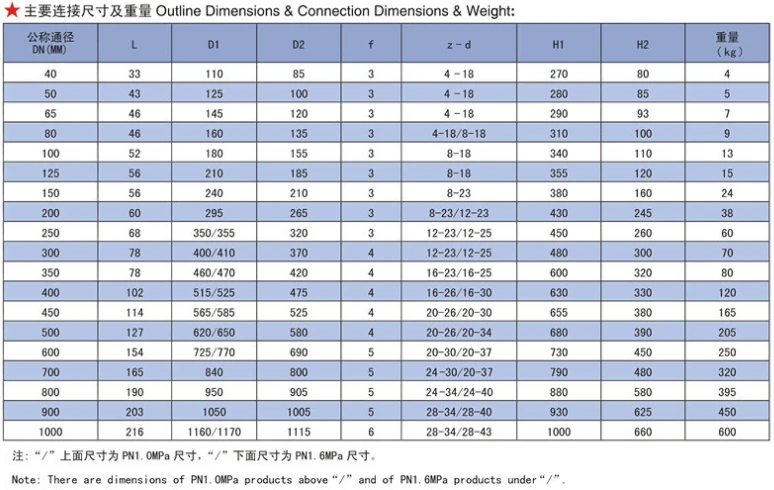

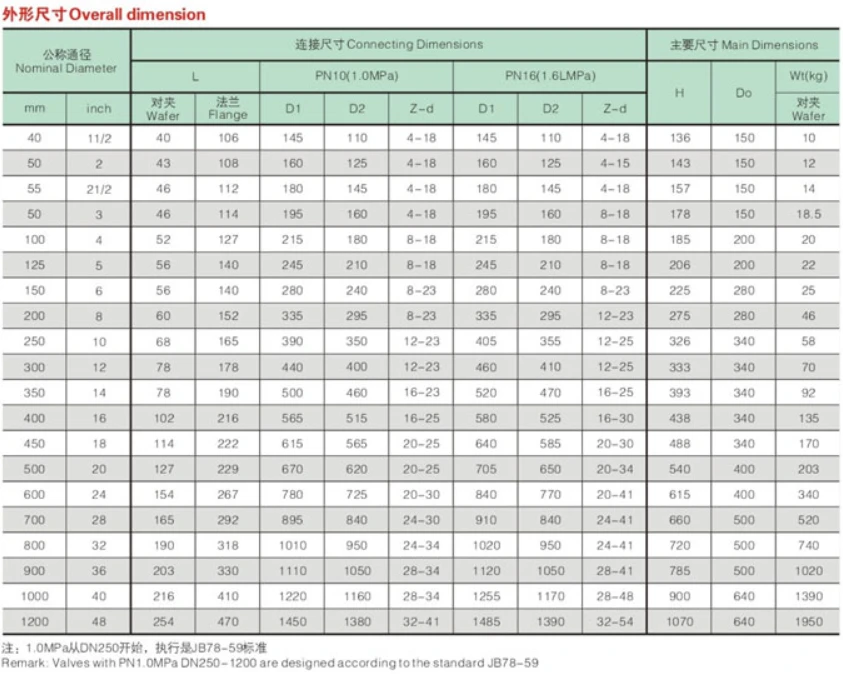

Overall Dimension
Company Information
Our company produces all kinds of industrial valve, such as valve, tianjin valve, tanggu valve, butterfly valve, tianjin butterfly valve, tanggu butterfly valve, wafer butterfly valve, flange butterfly valve, welded butterfly valve, soft sealing butterfly valve, hard sealing butterfly valve, gate valve, shut-off valve, ball valve, check valve, decompression valve, hydraulic control valve etc.
Tianjin Aiwo Valve Co., Ltd is a professional manufacturer of valves and its fittings for over 20 years, providing designing, producing, managing and after-sale service. Our products can be divided to 8 series: butterfly valve, ball valve, gate valve, check valve, stop cock valve, regulating valve, hydraulic control valve and decompression valve. The DN sizes ranges from 15mm to 3800mm, and the pressure ranges from 0.1MPa to 32MPa. Moreover, our products can be widely used in waterworks, sewage treatment plant, power plant, chemical plant, gasworks, heating company, oil fields, oil refineries, and high-rise buildings.
We will continuously develop and innovate to keep pace with the development in building construction, water conservancy, energy and electric power, petrochemical field. And in order to grow up to be China’s largest valve research and develop base and rank among the world first class, we are determined to develop high-tech, new design, complicated and special products. At the same time, “never the best, but more better” is always our company’s goal.
Welcome elites to join our sales network, as well as set up offices in name of our company. Any interest, please call us.
